Raptor Application Guide

Raptor_Diagram

Ford Raptor Lighting
CTL-CPZ610KIT_web

CTL-CPZ610KIT Shown
9888545

6.7” LED Light Cannon
• 2,500 Feet Of Usable Light
• 50-Watt Single Source LED
• 21 Different Covers Available
2015 Catalog Page 19
CTL-CPZ110KIT_web

CTL-CPZ110KIT Shown
9151069

 4.5” LED Light Cannon
• 1,000 Feet Of Usable Light
• 25-Watt Single Source LED
• 21 Different Covers Available
2015 Catalog Page 19
PX3010

XIL-PX3010 Shown
9116860

Xmitter Prime Xtreme (4”-50”)
• Brightest Output Per Inch
• Patented Mounting Feet
• Up To 47,520 Lumens
2015 Catalog Page 40
XPR-6_catalog

XPR-6 Shown
9891613

 XPR LED Light Bar (6”-52”)
• Superior Output & Projection
• Long Range IRIS Reflectors
• Powerful 10-Watt LEDs
2015 Catalog Page 42
DURA610KIT_web

DURA-610KIT Shown
9891309

Duralux 6 LED
• Available in 10°, 40° or 60° Optics
• Top-Binned 5-Watt LEDs
• 6,336 Raw Lumens
2015 Catalog Page 23
XIL-PDW_web

XIL-PDW Shown
9136127

 LED Pro Pods
• Amber, Blue, Green, Red or White
• Die-Cast Aluminum Housing
• Impact Resistant Lens
2015 Catalog Page 106
 Raptor Specific Kits
XIL-OEB10FRPX3610_catalog

XIL-OEB10FRPX3610 Shown
9887357

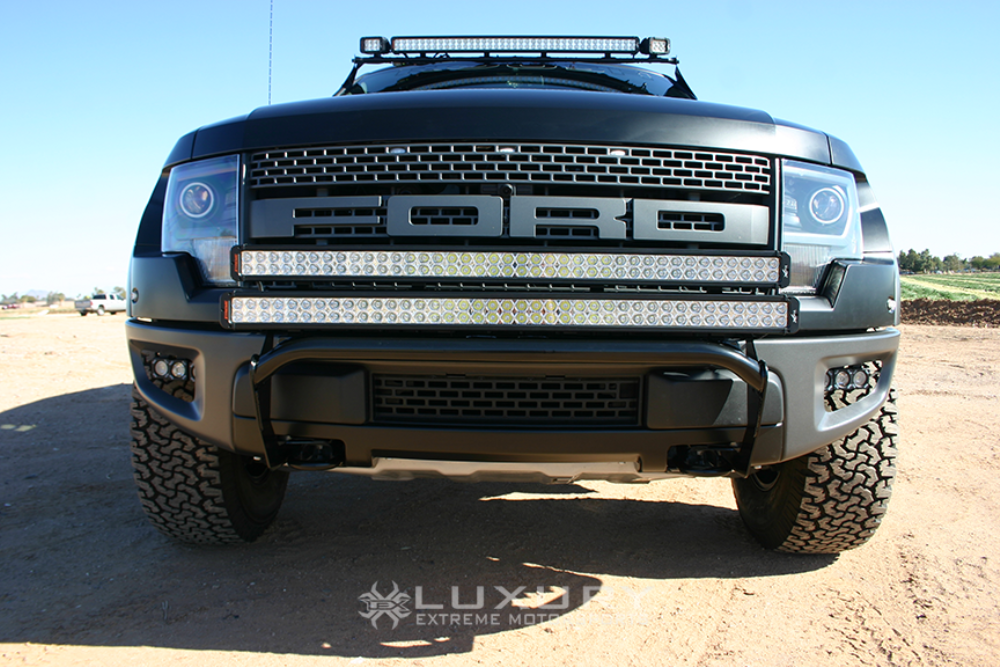

Bumper LED Light Bar
• Fits 2010-2014 Ford Raptors
• Available in 10°, 40° or Mixed
• Easily Add 19,008 Lumens
2015 Catalog Page 53
XIL-OE10FROPH_main

XIL-OE10FROPH Shown
9892450

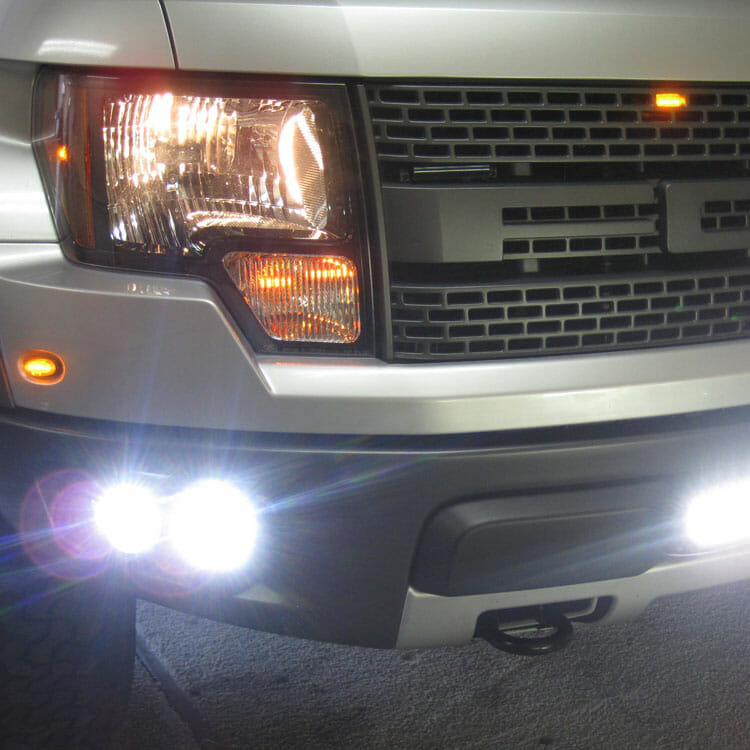

 LED Fog Lights
• Available With LED Halo Ring
• Long Range IRIS Reflectors
• Add Up To 4,208 Lumens
2015 Catalog Page 53
