Vision X Provides New Ways to Mount & Secure Your Lighting

Tube Clamp Mounts for 0.75” to 3.0” Diameter, Security Hardware

to fit Most Applications

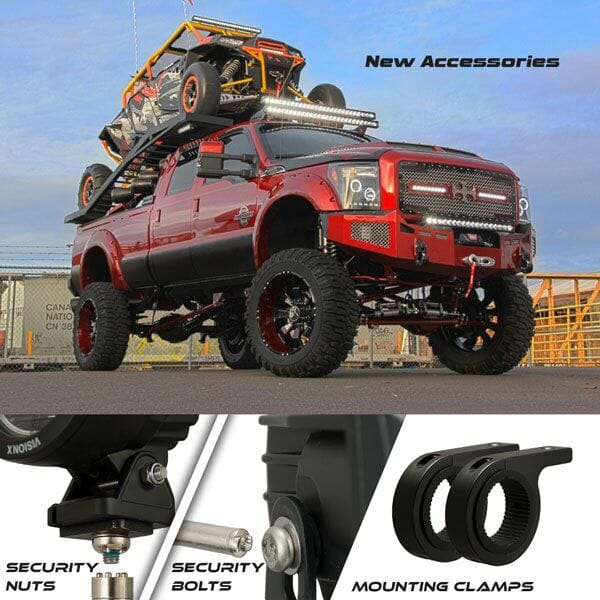

August 11th, 2016 – Vision X Lighting is excited to announce a new range of accessories: New Tube Clamp Mounts; Security Nuts; and Security Bolts. This new range of accessories complements a wide variety of Vision X Lighting Products, allowing you to mount Light Bars like the Long Distance XPR to any 0.75” to 3.00” tubing such as roll cages, bull bars, bumpers and more. The new flat mounting design also allows them to be used with any light such as the 6.7” LED Light Cannon. Prevent theft by combining security nuts and security bolts on your lights’ installation. Lock virtually any Vision X nut or bolt! Security bolts work to secure the bracket to the light, such as on the Optimus while security nuts work to secure the bracket to the mount.



More About Tube Clamp Mounts

The updated design of the clamps allows for use with any light or accessory, by providing a flat mounting surface. Available in 9 sizes: 0.75”, 1.00”, 1.25”, 1.50”, 1.75”, 2.00”, 2.25”, 2.50” and 3.00”. Clamps are sold as a pair (2), and feature a rubber insert which allows for additional adjustability in mounting diameter as well as protecting the finish of the tube you are mounting to. Larger size clamps feature a set screw to prevent the clamp from rotating around the tube. Clamp sizes 0.75” through 1.75” feature a through hole for M8 mounting hardware, while sizes 2.00” through 3.00” have a M10 through hole. These durable clamps are made of High Strength Anodized Aluminum. Mounting through holes can be drilled out or used with spacers to adjust size.



More About Security Hardware

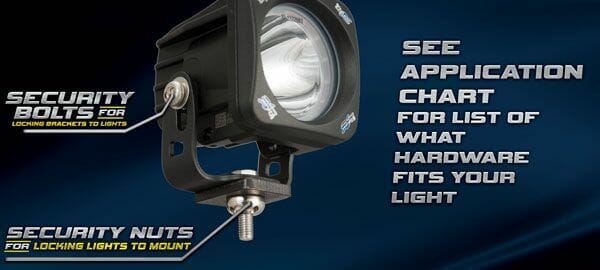

The security hardware from Vision X comes in several standard metric sizes to fit most lights, but is also a suitable upgrade for any matching size metric hardware. Security nuts secure the mount of your light to the vehicle, by adding security nuts to the base bolt and any base assembly bolts lights cannot be removed without the specially designed key. All security nuts are made of carbon steel and each item includes (2) security nuts and (1) keyed socket tool. All security bolts are made of 304 stainless steel and each item includes (2) security bolts and (1) keyed allen wrench tool. See table below for security hardware applications. Locking security hardware is available for virtually every nut and bolt on Vision X Lights.



Accessories Features

• Clamps Available from 0.75” to 3.00” Diameters
• Security Hardware Reduces Theft By Requiring Special Tool to Remove
• Locking Security Hardware Fits Virtually All Vision X Nuts and Bolts
• Sizes to Fit Almost Any Application
• 1 Year Limited Warranty



Security Hardware Application Chart

Item #	Part #	Application
XIL-SN06	9897349	Fits to mounting bolts for UF32 – Solo Pods (SP100 – S1100 – MX Solo) – Dura Mini – Light Bar Mounting Feet (Xmitter, PX, LPX, XPI, XPR Series)
XIL-SN08	9893488	Fits to mounting bolts for All Optimus, Dura Series. Fits to bracket to light bolts for 4.7” Cannon and UMX Series
XIL-SN10	9893471	Fits to mounting bolts for 8.7″- 6.7″ – 4.7″ Cannon Series – Dual Optimus – TPX Series – UMX Series
XIL-SN12	9893464	Any M12 Mounting Hardware
XIL-SB0615	9893440	L Bracket Mounting Bolt to Side of Light for XPR – XPI Light Bars
XIL-SB0620	9893457	Bracket to Light bolts Horizon Series
XIL-SB0815	9893419	Bracket to Light bolts for Optimus Series, DURA Series
XIL-SB0820	9893426	Any M8 x 20 Bolt
XIL-SB0825	9893433	Any M8 x 25 Bolt



Item #	Part #	Description	Jobber
XIL-C075	9897325	PAIR OF BLACK 0.75″ TUBE FRAME MOUNTING CLAMP (FOR M8 MOUNTING BOLT)	$29.00
XIL-C100	9897301	PAIR OF BLACK 1.00″ TUBE FRAME MOUNTING CLAMP (FOR M8 MOUNTING BOLT)	$29.00
XIL-C125	9897288	PAIR OF BLACK 1.25″ TUBE FRAME MOUNTING CLAMP (FOR M8 MOUNTING BOLT)	$29.00
XIL-C150	9897264	PAIR OF BLACK 1.50″ TUBE FRAME MOUNTING CLAMP (FOR M8 MOUNTING BOLT)	$39.00
XIL-C175	9897240	PAIR OF BLACK 1.75″ TUBE FRAME MOUNTING CLAMP (FOR M8 MOUNTING BOLT)	$39.00
XIL-C200	9893372	PAIR OF BLACK 2.00″ TUBE FRAME MOUNTING CLAMP (FOR M10 MOUNTING BOLT)	$49.00
XIL-C225	9893389	PAIR OF BLACK 2.25″ TUBE FRAME MOUNTING CLAMP (FOR M10 MOUNTING BOLT)	$69.00
XIL-C250	9893396	PAIR OF BLACK 2.50″ TUBE FRAME MOUNTING CLAMP (FOR M10 MOUNTING BOLT)	$69.00
XIL-C300	9893402	PAIR OF BLACK 3.00″ TUBE FRAME MOUNTING CLAMP (FOR M10 MOUNTING BOLT)	$69.00
XIL-SN06	9897349	SECURITY NUT M6 X 2PCS, 1 TOOL	$19.00
XIL-SN08	9893488	SECURITY NUT M8 X 2PCS, 1 TOOL	$19.00
XIL-SN10	9893471	SECURITY NUT M10 X 2PCS, 1 TOOL	$19.00
XIL-SN12	9893464	SECURITY NUT M12 X 2PCS, 1 TOOL	$19.00
XIL-SB0615	9893440	SECURITY BOLT 6X15 2PCS INCLUDING 1 TOOL	$19.00
XIL-SB0620	9893457	SECURITY BOLT 6X20 2PCS INCLUDING 1 TOOL	$19.00
XIL-SB0815	9893419	SECURITY BOLT 8X15 2PCS INCLUDING 1 TOOL	$19.00
XIL-SB0820	9893426	SECURITY BOLT 8X20 2PCS INCLUDING 1 TOOL	$19.00
XIL-SB0825	9893433	SECURITY BOLT 8X25 2PCS INCLUDING 1 TOOL	$19.00



Supersedes Previous Billet Tube Brackets (XIL-Bxxx):

Item #	Part #		Superseded By:Item #	Part #
XIL-B075	4006584	>	XIL-C075	9897325
XIL-B100	4006591	>	XIL-C100	9897301
XIL-B125	4006577	>	XIL-C125	9897288
XIL-B150	4006522	>	XIL-C150	9897264
XIL-B168	4006560	>
XIL-B175	4006539	>	XIL-C175	9897240
XIL-B200	4006546	>	XIL-C200	9893372

XIL-Bxxx Brackets Have Been Discontinued, and Superseded by the new XIL-Cxxx Clamps
For more information, please call 888-489-9820

###
