• Product

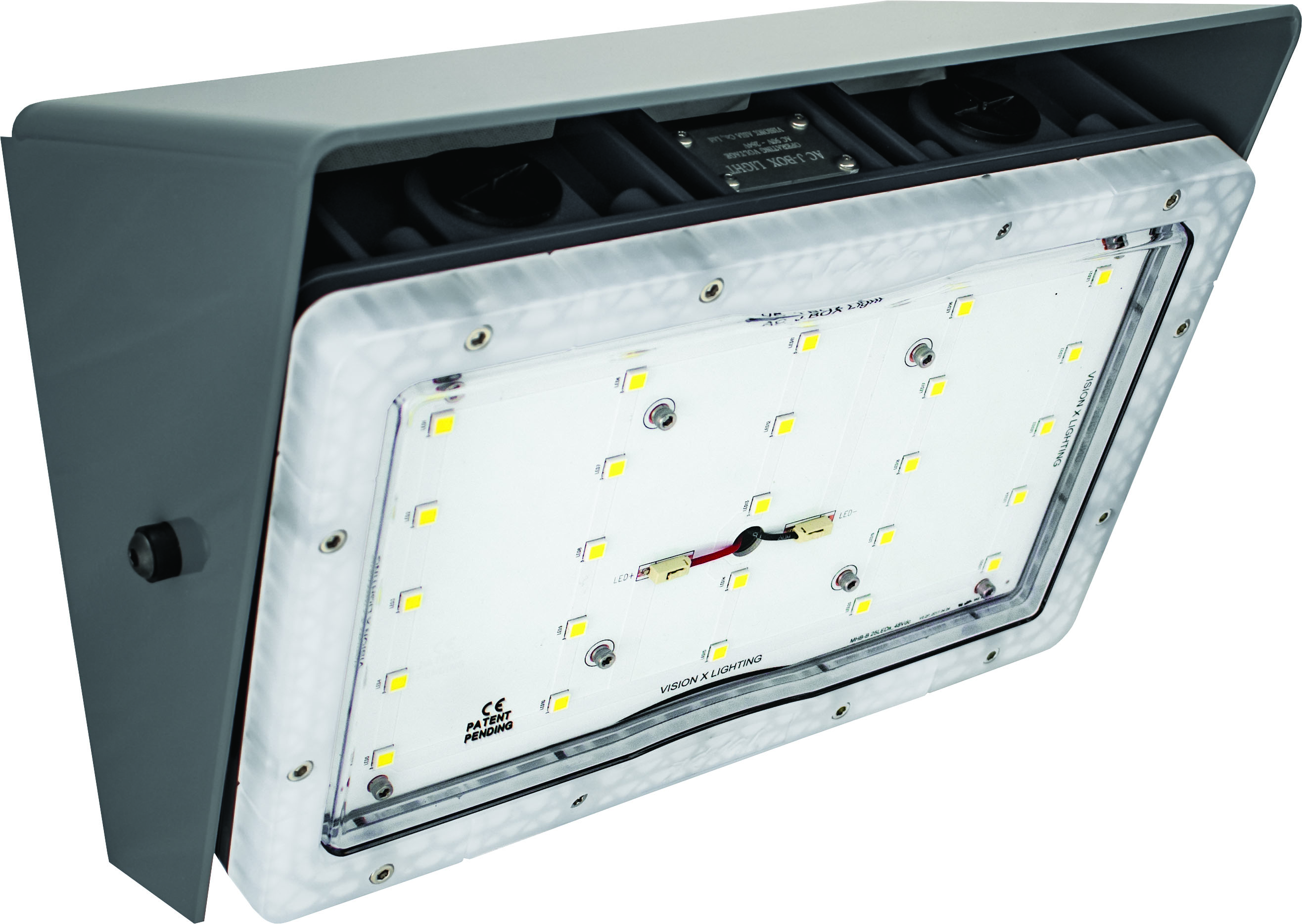

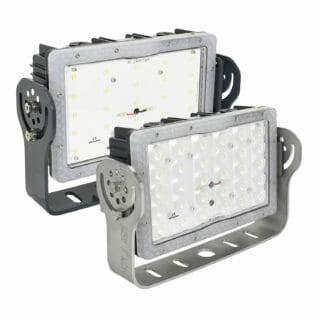

The 50-Watt Junction Box Series features advanced electronic technology including Pulse Width Modulation, Electronic Thermal Management, and a Redundant Circuit Design that allows the fixtures to withstand harsh environments. The Junction Box design makes for easy wiring installation with a Battery-Backup System available. This fixture series is available with surface mounts, or with stainless steel or powder-coated standard trunnion brackets. Non-optics with a 180° degree ultra-wide beam pattern or optics available in a variety of beam patterns. Use for indoor or outdoor applications including low bay lighting, exterior wall pack area lighting.

  • Marine-grade anti-corrosive coating
  • Recommended for replacing 100-300Watt metal halide or HPS fixture

Mounting Brackets

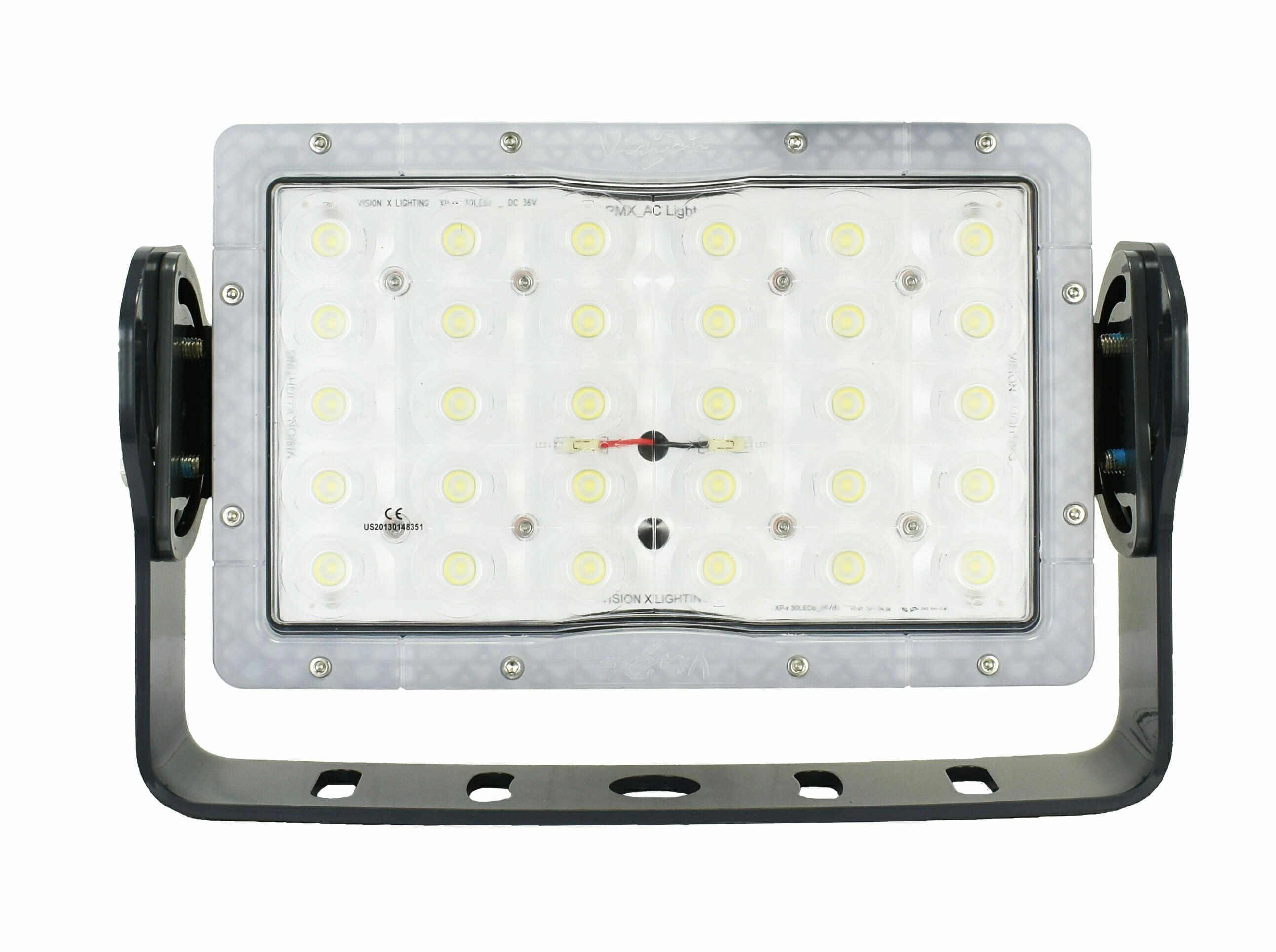

Standard Powder-Coated Trunnion
Vibration Rating: 15.6 Grms

Heavy-Duty Powder-Coated Trunnion
Vibration Rating: 60 Grms

Stainless Steel Trunnion
Applications that require stainless steel for rust protection. Vibration Rating: 15.6 Grms

Heavy Duty Stainless Steel Trunnion
Applications that require stainless steel for rust protection. Vibration Rating: 60 Grms

Beam Patterns

10° SPOT BEAM

The narrowness of this beam pattern provides long-range visibility with precise aiming used to light a specific area. The control of this angle makes it easy to highlight landscape features, objects, and wall art with little peripheral glare.

25°NARROW BEAM

This beam pattern is used with the 10° pattern is too narrow.

40° MEDIUM BEAM

This is a great multi-purpose light beam and serves as the optimum balance between distance and width.

60° FLOOD BEAM

The 60° is one of the most common flood beam patterns as it spreads the light evenly in large spaces, such as warehouses, stages, parking lots, and driveways.

90° WIDE FLOOD BEAM

This pattern is used almost exclusively with environmental or structural applications, lighting up large surface areas while drastically reducing hot spots.

180° ULTRA WIDE FLOOD BEAM

This beam pattern evenly disperses the widest coverage of light with no hot spots.

Check out the Dark Skies Compliant version.

Category : ,

Warranty : 5 Year Limited Warranty
