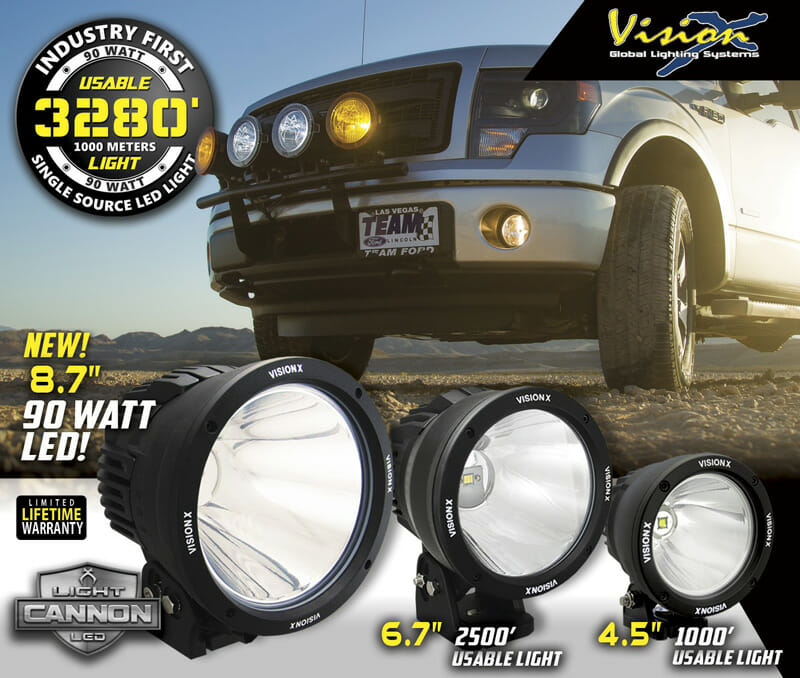

8.7” Round 90 Watt LED Light Cannon
July 22, 2014 – Auburn, WA – The new 220 millimeter (8.7″) artillery from Vision X Lighting marks another groundbreaking move by the progressive light manufacturer, as they have continued their exclusive alliance with Luminus, the world’s leading big chip LED manufacturer. This is the first Single Source LED light to achieve 1000 meters or 3280 feet of usable light. Like the other Cannon LED Series lights (4.5″ & 6.7″), the new 8.7” Light Cannon supports snap on filters to change beam and color, turning this light into 20 lights in 1. The rugged single-bolt mounting platform ensures a strong hold under high vibration, while the Hybrid Aluminum/Polycarbonate housing is engineered for extreme environments.


Exclusive Technology:
This exclusive 90-Watt LED chip is the world’s first round single chip high powered LED, which produces an unmatched seemless beam pattern. The 90-watt Luminus Ultra-Premium LED combined with Vision X Lighting’s Prime Drive, Integrated Thermal Management and proprietary Iris Reflector Technology produce amazing lighting distance and reliability, with a smooth light pattern.

Lightweight and Tough:
This leading technology is encased by a lightweight, high-strength Hybrid Aluminum/Polycarbonate housing (just10.36 lbs.), providing the optimum combination for enduring the hottest, coldest, wettest (IP-68 waterproof rating) and most rugged conditions.


Protection and Improved Visibility:

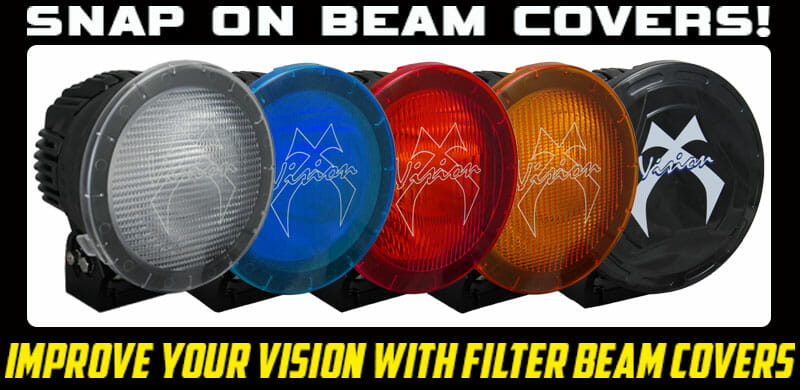

Up to 20 different Light Cannon Cover Filters are available. Each polycarbonate translucent cover also protects the Light Cannon as well as improving vision in dust, fog or snow. Each is finished with a glow in the dark printed “X” for a unique look at night when the Light Cannons are off. Cannon Covers are available in clear, blue, red and yellow colors along with euro, trail flood, wide flood and elliptical beam changing covers


Unbelievable Value:
The Light Cannon LED light comes standard with Vision X Lighting’s Extended Warranty and is exceptionally priced at $649 for a single 8.7″ light, or available in the Light Cannon Kit with two 8.7″ Light Cannons and Wiring Harness for $1,299.

Key Features:

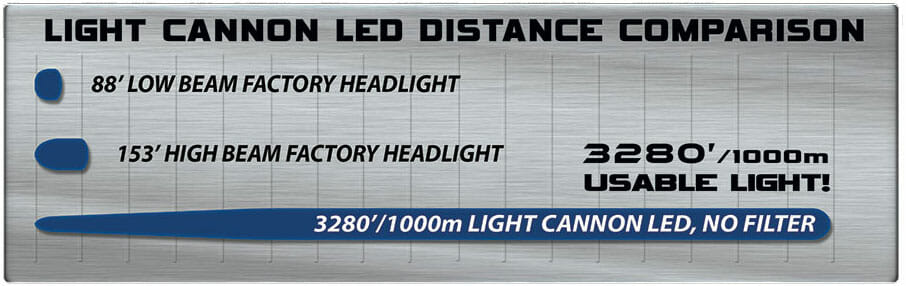

  • 3280′ of Usable Light (1000M)
  • 90 watt Luminus Single LED for Smoothest Pattern
  • 8.7″ Round with 10° Narrow Beam

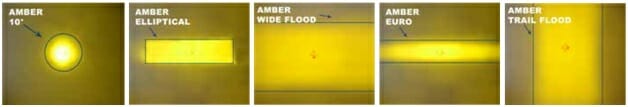

  • 20 Optional Snap on Driving Filters – Available in Spot, Euro, Trail Flood, Wide Flood, EllipticalBeams and Available in Clear, Blue, Yellow, Red Colors
  • Optional Black Out filter with Glow In The Dark “X”
  • Universal Single Bolt Mounting
  • Innovative Hybrid Construction, just10.36 lbs
  • Advanced Heat Sink
  • Proprietary IRIS Reflector Technology
  • Prime Drive for Enhanced Reliability and Output
  • Integrated Electronic Thermal Management
  • Polycarbonate Lens
  • IP-68 Waterproof
  • Weatherproof Deutsch Connector
  • Patent Pending

8.7” Light Cannon LED Light (90 watt, 10° Beam)
Part# 9890852 (CTL-CPZ810) – 1 Light & Pigtail $649.00
Part# 9890074 (CTL-CPZ810KIT) – 2 Lights & Wiring Harness $1,299.00

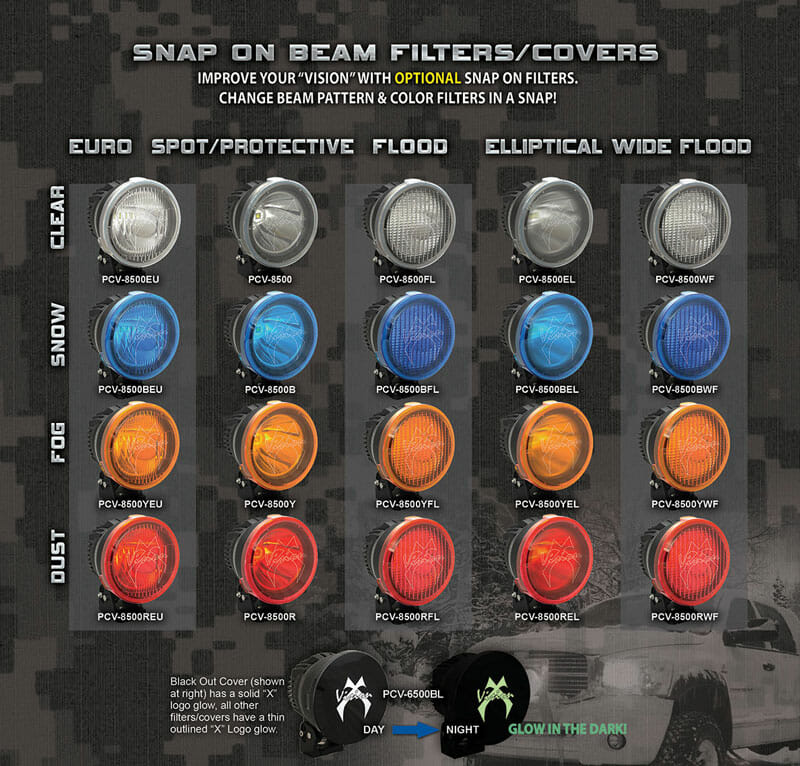

PCV-8500 4003255  $     39.00 8.7″ CANNON PCV COVER CLEAR
PCV-8500B 4003583  $     39.00 8.7″ CANNON PCV COVER BLUE
PCV-8500BEL 9890869  $     39.00 8.7″ CANNON PCV COVER BLUE ELLIPTICAL
PCV-8500BEU 9890098  $     39.00 8.7″ CANNON PCV COVER BLUE EURO
PCV-8500BFL 9890104  $     39.00 8.7″ CANNON PCV COVER BLUE FLOOD
PCV-8500BL 9890876  $     39.00 8.7″ CANNON PCV COVER BLACK
PCV-8500BWF 9890111  $     39.00 8.7″ CANNON PCV COVER BLUE WIDE FLOOD
PCV-8500EL 9890081  $     39.00 8.7″ CANNON PCV COVER CLEAR ELLIPTICAL
PCV-8500EU 9890128  $     39.00 8.7″ CANNON PCV COVER CLEAR EURO
PCV-8500FL 9890135  $     39.00 8.7″ CANNON PCV COVER CLEAR FLOOD
PCV-8500R 4003576  $     39.00 8.7″ CANNON PCV COVER RED
PCV-8500REL 9890425  $     39.00 8.7″ CANNON PCV COVER RED ELLIPTICAL
PCV-8500REU 9890432  $     39.00 8.7″ CANNON PCV COVER RED EURO
PCV-8500RFL 9890449  $     39.00 8.7″ CANNON PCV COVER RED FLOOD
PCV-8500RWF 9890456  $     39.00 8.7″ CANNON PCV COVER RED WIDE FLOOD
PCV-8500WF 9890463  $     39.00 8.7″ CANNON PCV COVER CLEAR WIDE FLOOD
PCV-8500Y 4002791  $     39.00 8.7″ CANNON PCV COVER YELLOW
PCV-8500YEL 9890159  $     39.00 8.7″ CANNON PCV COVER YELLOW ELLIPTICAL
PCV-8500YEU 9890470  $     39.00 8.7″ CANNON PCV COVER YELLOW EURO
PCV-8500YFL 9890487  $     39.00 8.7″ CANNON PCV COVER YELLOW FLOOD
PCV-8500YWF 9890142  $     39.00 8.7″ CANNON PCV COVER YELLOW WIDE FLOOD


Technical Data 8.7″ Light Cannon LED

  • Warranty: Extended
  • Raw Lumens: 5,800 lm
  • Wattage: 90
  • Weight: 10.3 lbs / 4.7 kg
  • Dimensions: 8.71” x 7.92” x 10.57”
  • Input Voltage: 9-32V DC
  • Amp Draw(12V): 7.5A
  • IP Rating: IP-68
  • Vibration Rating: 15.6Grms
  • Operating Temp: -40 ~ +85


For more information please visit www.visionxusa.com or call 888-489-9820


About Vision X Lighting:

Vision X Lighting, located in Seattle, Washington, was established in 1997 with the mission to revolutionize the lighting industry. Since that time, Vision X Lighting has created one of the largest premium lighting offerings in the world with hundreds of products and applications. The military, border patrol, and even NASA have trusted Vision X Lighting on vehicles that cannot work with second best. Vision X Lighting has lead the lighting industry growing 759% in the past 3 years which placed them on the 2012 INC 5000 list at 503, 10th overall in manufacturing and 10th in the Seattle Washington area. Vision X Lighting’s commitment to its customers, dealers and product is unsurpassed. www.visionxusa.com



PDF of Press Release: Download
PDF of Sales Sheet: Download
90 Watt Cannon Pricing File: Download
