Projecting Usable Light Further Than Ever Before Possible

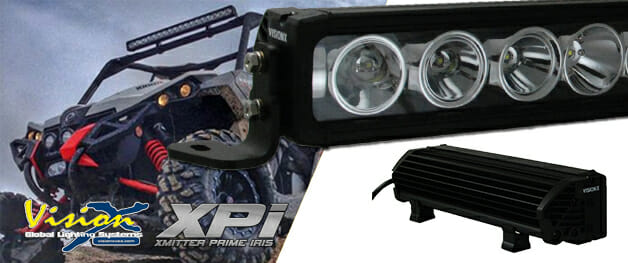

May 15th – Auburn, WA – Vision X Lighting introduces the Xmitter Prime Iris Light Bar series or XPI. This new generation of LED Light bars features two features not seen on a Vision X light bar before, IRIS reflector technology, and dual mounting, both patented feet mount and end mount brackets are included standard. The XPI series is launching with 7 different lengths, ranging from 11.5” to 51”, and a single beam option.
The 5-watt LEDs in these light bars are paired with IRIS reflector technology to project usable light further than ever before possible. IRIS reflector technology was first introduced with the Optimus Series in 2012, using deeply recessed reflectors to achieve unmatched distance in a light of that size. The XPI light bars create an unmatched distance option in LED Light Bars. The 27 LED light bar produces 1,600ft of usable light. Another new innovation in these light bars is the use of tilting reflectors, allowing the outer 3 LEDs on each end of the light bars (sizes above 6 LED) to tilt out to create a mixed or combo beam pattern. Increasing the spread of the light, tilting reflectors creates even more visibility for the driver.

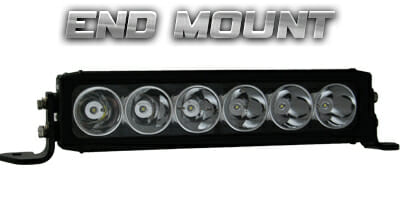

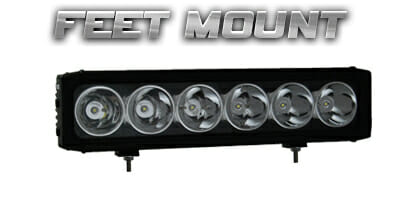

The XPI series offers several mounting options, Vision X’s patented feet mounts, new end mount brackets, or pair the patented feet mounts with Vision X’s billet tube mounts (available as an accessory) to mount to roll cages or any tube framing. New end mounts securely fasten to the housing with two bolts and lock washers per end, and allow for vertical adjustment once mounted.
Vision X Lighting’s patented, premium LED lights feature an Extended Lifetime Ltd. Warranty to ensure the highest customer satisfaction.
XPI Series Features:
- Dual Mounting Options Standard (patented feet mount or end mount)

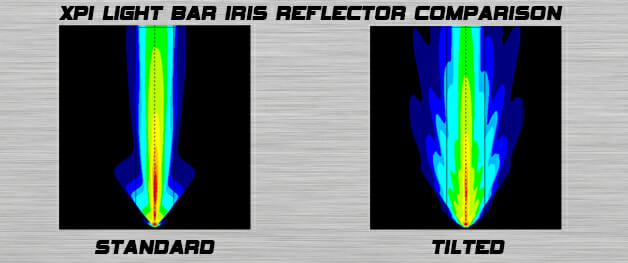

- Proprietary IRIS Reflector Technology Featuring Tilting Reflectors
- Tilting Reflectors Provide Mixed\Combo Beam Spread
- Xtreme Five Watt LED is Driven to 90% Efficiency
- Integrated Electronic Thermal Management
- Weatherproof Deutsch Connector
- Polycarbonate Lens
|Item #||Part #||Description||Jobber|
|XPI-6||9889399||11″ XMITTER PRIME IRIS LIGHT BAR 6 LED WITH STRAIGHT OPTICS (10 DEGREE)||$279.00|
|XPI-12M||9889405||25″ XMITTER PRIME IRIS LIGHT BAR 12 LED WITH TILTED OUTER OPTICS FOR MIXED BEAM||$499.00|
|XPI-15M||9889443||30″ XMITTER PRIME IRIS LIGHT BAR 15 LED WITH TILTED REFLECTOR FOR MIXED BEAM||$599.00|
|XPI-18M||9889412||35″ XMITTER PRIME IRIS LIGHT BAR 18 LED WITH TILTED OUTER OPTICS FOR MIXED BEAM||$699.00|
|XPI-21M||9890500||40″ XMITTER PRIME IRIS LIGHT BAR 24 LED WITH TILTED OUTER OPTICS FOR MIXED BEAM||$799.00|
|XPI-24M||9889429||46″ XMITTER PRIME IRIS LIGHT BAR 24 LED WITH TILTED OUTER OPTICS FOR MIXED BEAM||$899.00|
|XPI-27M||9889436||51″ XMITTER PRIME IRIS LIGHT BAR 27 LED WITH TILTED OUTER OPTICS FOR MIXED BEAM||$999.00|
*Wiring Harness Sold Separately For All Models — **40” Available July 2nd
