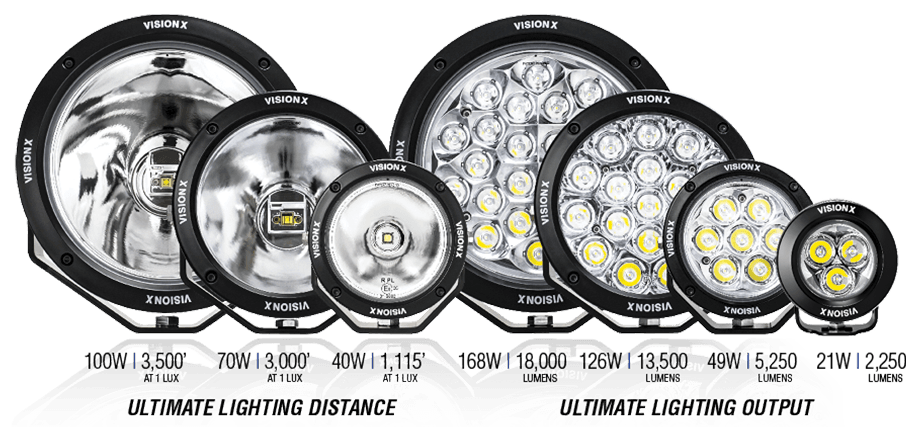

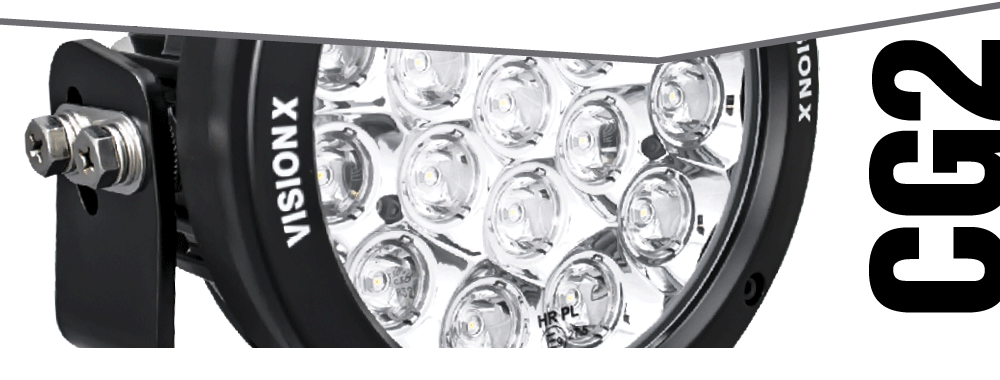

MULTI LED FOR
MAXIMUM LIGHT OUTPUT

Multi-LED CG2 LED Light Cannons are the ultimate light for blasting through the night with a powerful broad driving beam pattern and outstanding medium distance lighting coverage. These coupled with Single LED Cannons and there is nothing left in the dark.

BUY NOW

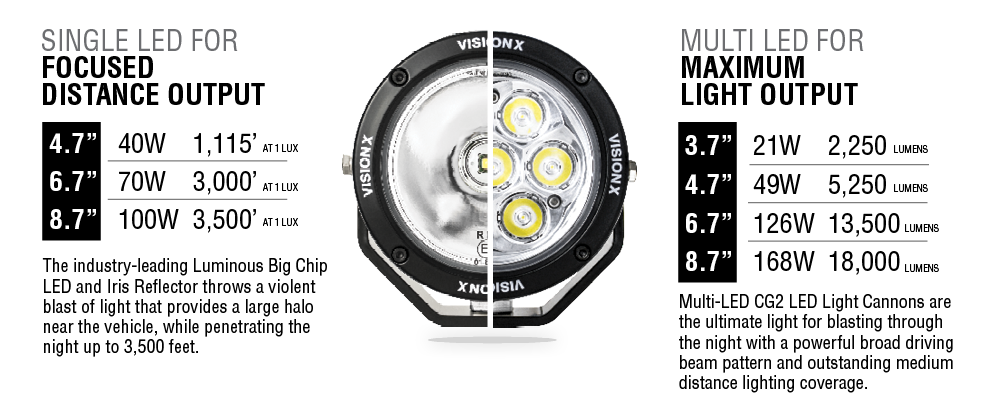

MULTI LED 3.7″     MULTI LED 4.7″     MULTI LED 6.7″     MULTI LED 8.7″



 SINGLE LED FOR
FOCUSED DISTANCE OUTPUT

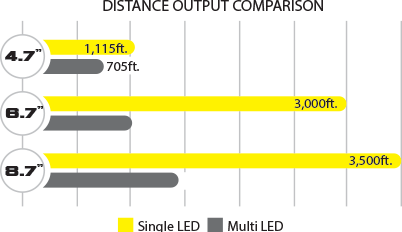

Single LED CG2 Light Cannons take lighting to uncharted territory with incomparable distances.  The industry-leading Luminous Big Chip LED and Iris Reflector throws a violent blast of light that penetrates the night up to 3,500 feet. If you need superior distance from your lighting, this is the solution.

BUY NOW

SINGLE LED 4.7″     SINGLE LED 6.7″     SINGLE LED 8.7″



FEATURES

HEAT MANAGEMENT SYSTEM
Advanced circuitry and aluminum heat sink design ensures maximum light output during sustained periods of use.


WEATHERPROOF CONNECTOR
The Deutsch plug ensures the functionality of every Light Cannon even in the harshest conditions.

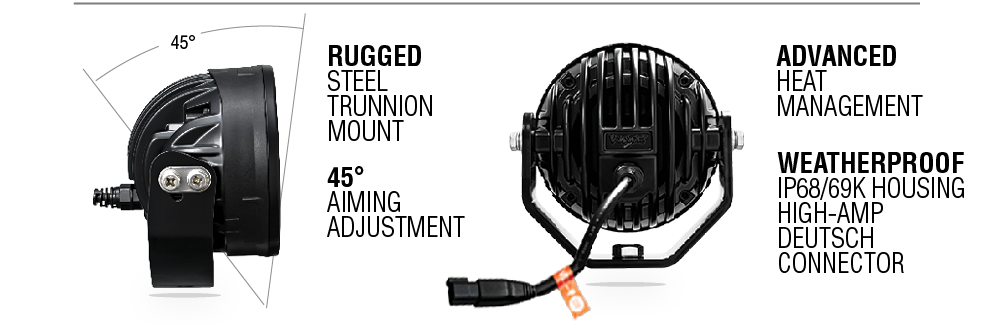

ADJUSTABLE AIMING SYSTEM
Steel trunnion mount provides 45° of lighting adjustment and secured by a robust 4-bolt locking system.


BUILT FOR HARSH CONDITIONS
The IP-68 / 69K certified housing ensures a water tight seal even when completely submerged.

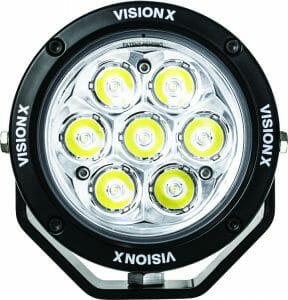

MULTI LED
ITEM # PART # SIZE INCLUDES

DIMENSIONS

(WxHxD)

WEIGHT RAW LUMENS EFFECTIVE LUMENS WATTS AMP DRAW @ 12V
CG2-CPM310 9912141  3.7”  1x Light  3.62”x3.62”x3.82”  1.52lbs  2,250lm  1,575lm  21W  1.75A
CG2-CPM310KIT 9912158 3.7” 2x Lights, Harness 3.62”x3.62”x3.82”(ea) 3.04lbs 4,500lm 2080lm 42W 2.5A

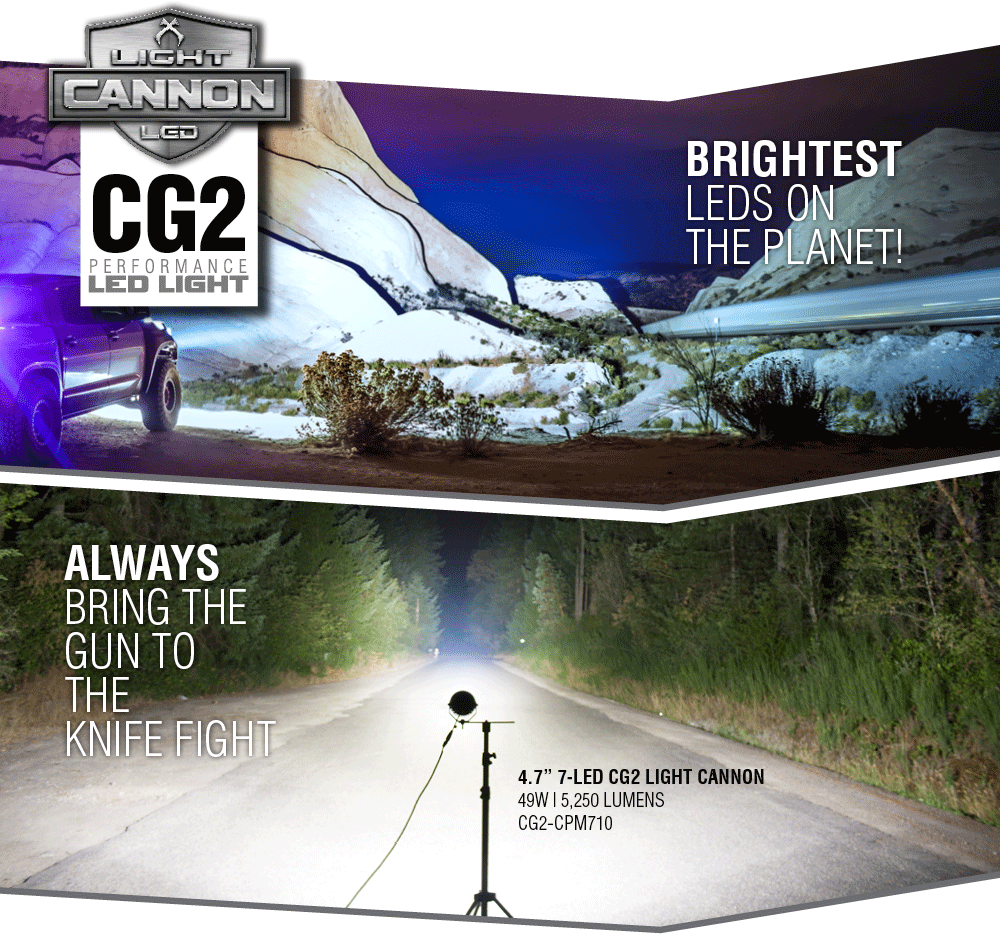

CG2-CPM710 9907499 4.7” 1x Light 5.42”x5.28”x3.69” 2.87lbs 5,250lm 3,675lm 49W 4.08A
CG2-CPM710KIT 9907437 4.7” 2x Lights, Harness 5.42”x5.28”x3.69”(ea) 5.74lbs 10,500lm 7,350lm 98W 8.17A
CG2-CPM1810 9907505 6.7” 1x Light 7.30”x7.09”x5.37” 7.05lbs 13,500lm 9,450lm 126W 10.5A
CG2-CPM1810KIT 9907444 6.7” 2x Lights, Harness 7.30”x7.09”x5.37”(ea) 14.1lbs 27,000lm 18,900lm 252W 21A
CG2-CPM2410 9907512 8.7” 1x Light 9.36”x9.34”x6.30” 12.79lbs 18,000lm 12,600lm 168W 14A
CG2-CPM2410KIT 9907451 8.7” 2x Lights, Harness 9.36”x9.34”x6.30”(ea) 25.58lbs 25.58lbs 36,000lm 25,200lm 336W 28A

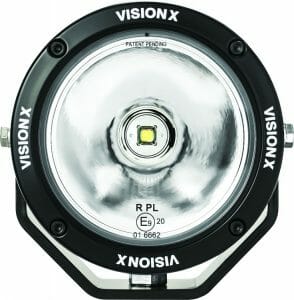

SINGLE LED
ITEM # PART # SIZE INCLUDES

DIMENSIONS

(WxHxD)

WEIGHT RAW LUMENS EFFECTIVE LUMENS WATTS AMP DRAW @ 12V
CG2-CPZ110 9907574 4.7” 1x Light 5.42”x5.28”x3.69” 2.43lbs 3,000lm 2,100lm 40W 3.33A
CG2-CPZ110KIT 9907468 4.7” 2x Lights, Harness 5.42”x5.28”x3.69”(ea) 4.86lbs 6,000lm 4,200lm 80W 6.67A
CG2-CPZ610 9907567 6.7” 1x Light 7.30”x7.09”x5.37” 5.73lbs 4,000lm 2,800lm 70W 5.83A
CG2-CPZ610KIT 9907475 6.7” 2x Lights, Harness 7.30”x7.09”x5.37”(ea) 11.46lbs 8,000lm 5,600lm 140W 11.67A
CG2-CPZ810 9907550 8.7” 1x Light 9.36”x9.34”x6.30” 9.92lbs 6,200lm 4,340lm 100W 8.3A
CG2-CPZ810KIT 9907482 8.7” 2x Lights, Harness 9.36”x9.34”x6.30”(ea) 25.58lbs 19.84lbs 12,400lm 8,680lm 200W  16.67A

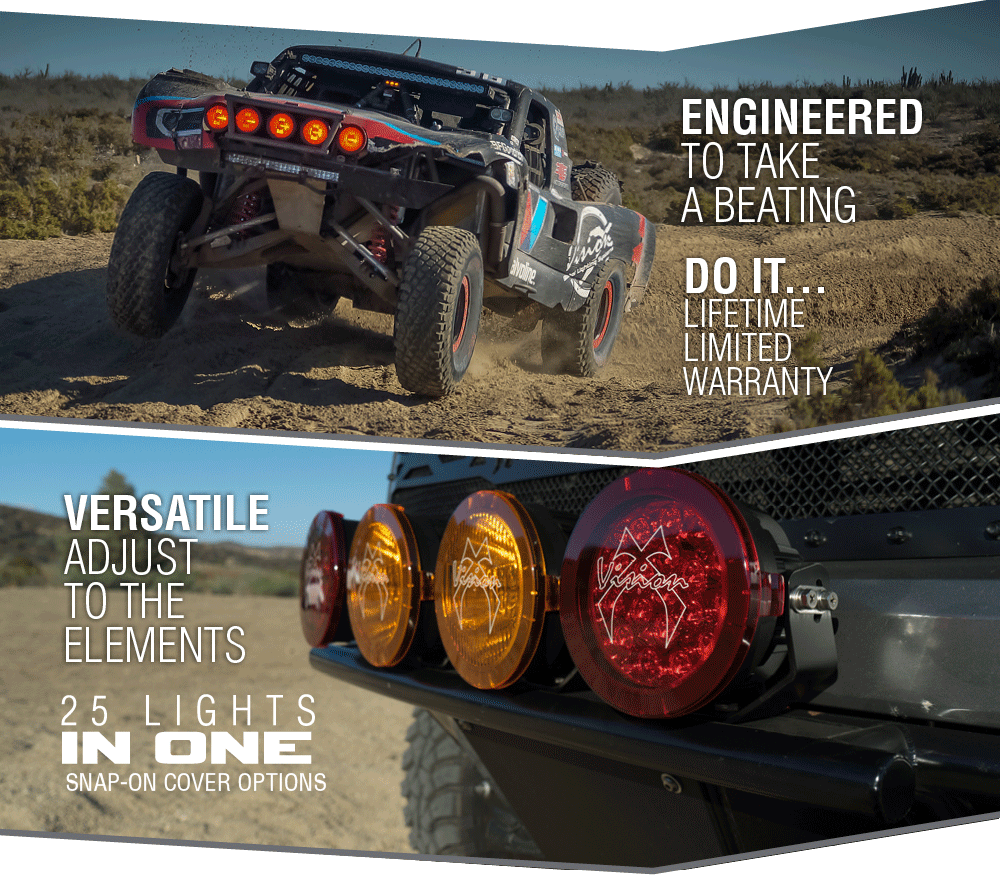

25 LIGHTS
IN ONE


Each Light Cannon is 25 lights in one with the help of snap-on polycarbonate covers that can alter the beam pattern and change the color of the Cannon. Tackle any weather condition with the proper color cover or quickly change your spot cover to a flood cover for a wider beam when necessary.
